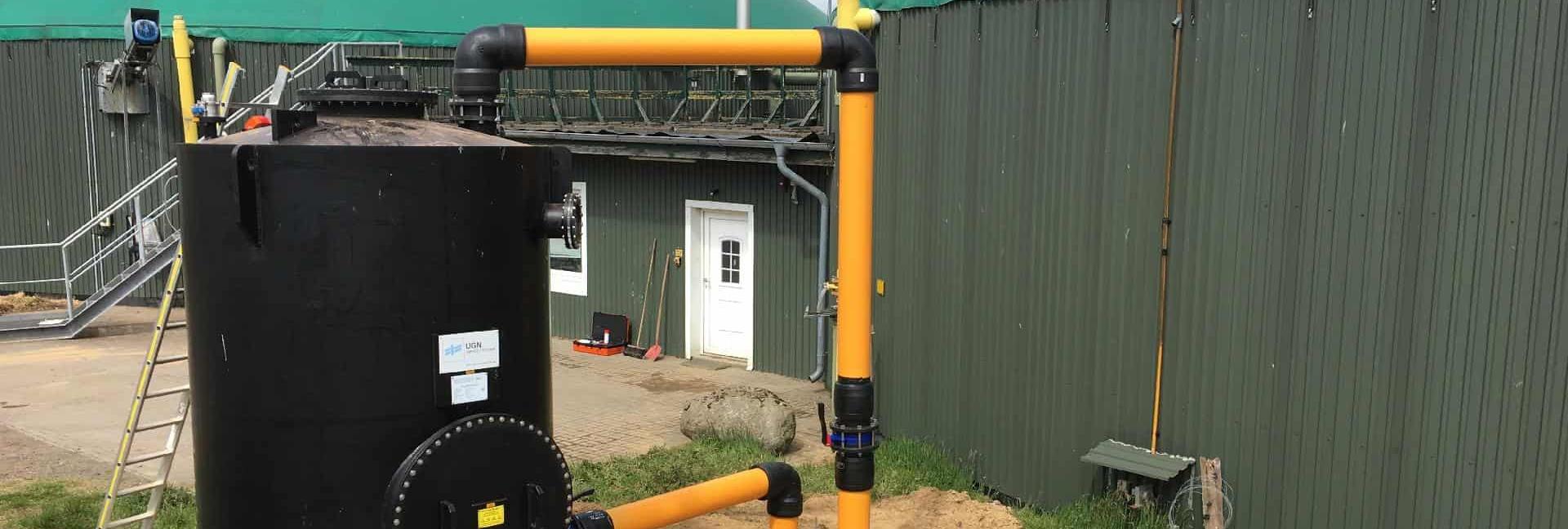

The project was commissioned at the end of August 2019 and was implemented in about 2 months. The container production and assembly of all add-on components was carried out by the company UGN. It is a single biogas filter module without fittings cabinet and control cabinet (no electrical components). The filter module must be independently connected to all on-site media (heating circuit, air metering, fresh water supply and condensate drainage). A stainless steel heat exchanger is integrated in the filter module and the ball valves are available. The customer is responsible for commissioning.

Task:

Separation of hydrogen sulphide from the biogas of an agricultural biogas plant

System parameters:

Pollutant concentration: max. 150 ppm hydrogen sulphide
Flow rate: max. 630 Nm³/h

Solution:

BEKOM H procedure
6 m³ filter material UgnCleanTubes® S3.5-13
